BUDI Fibre Entrance Enclosures

Compact, Modular & Reliable Fibre Management for Building Access

At Cable Accessories Ltd, we supply and support the full range of CommScope BUDI™ (Building Distribution) enclosures — a modular, wall-mounted family of fibre boxes for indoor and outdoor use.

Designed for fast deployment and long-term reliability, BUDI provides a secure, organised interface between outside plant (OSP) and indoor fibre networks. Whether for FTTH, FTTB, or enterprise building entrances, BUDI offers flexible configurations that support splicing, patching, and plug-and-play connections — all in a compact, rugged enclosure.

Contact Us

Whether you need product advice, a custom solution, or just have a quick question — we’re here to help and happy to chat!

The BUDI platform is built for small to medium-sized buildings, offering easy access, consistent fibre handling, and scalable capacity.

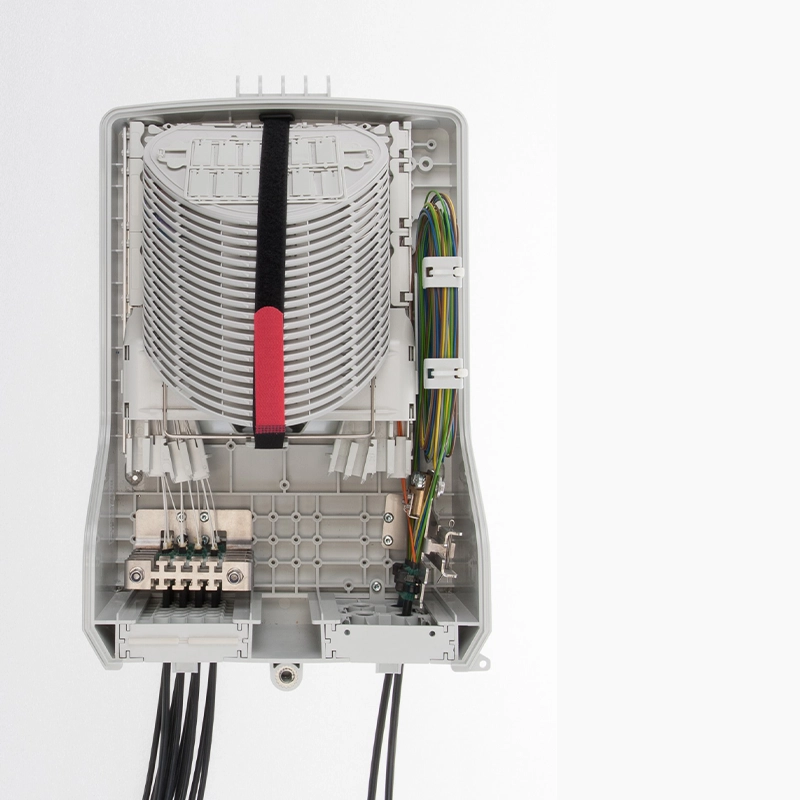

Each enclosure incorporates CommScope’s proven FIST™ fibre management system, which delivers structured routing, controlled bend radius, and modular tray organisation for efficient splicing and termination.

Key Features

Indoor / Outdoor (IP54) Rated – Rugged, weather-resistant termination point.
Splice, Splice/Patch, or Pre-Terminated Versions – Choose the configuration that suits your installation.
Supports Connectorized Assemblies – LC, SC, and pre-terminated options for fast field connections.
Flexible Tray Design – Integrates FIST single circuit, single element, or slim element trays for varying capacities.

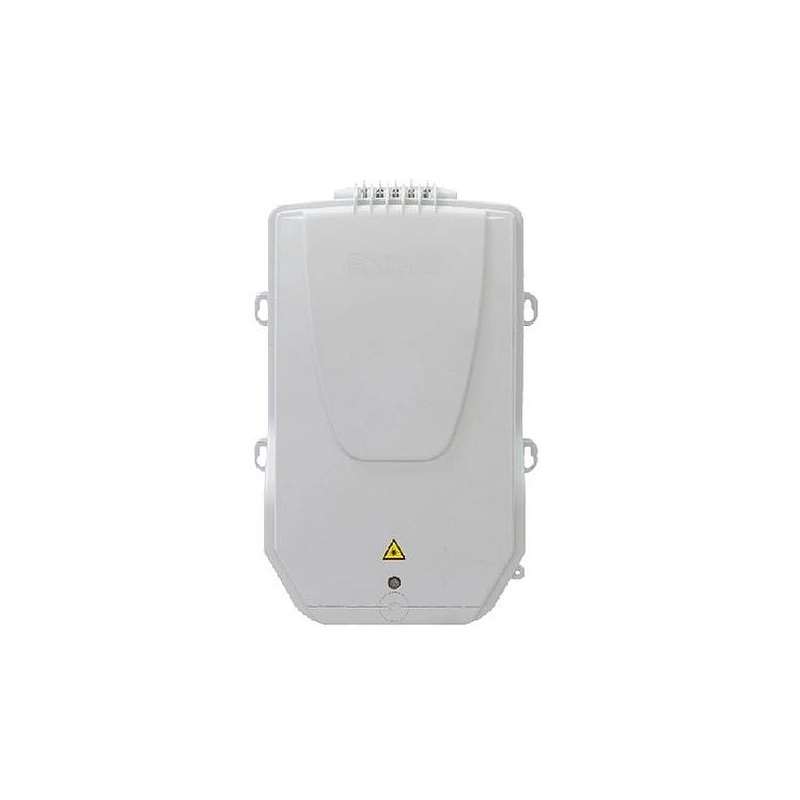

Lockable Housing – Ensures secure access in multi-operator or shared environments.
UV Resistant & LSZH Materials – Safe, durable performance indoors or outdoors.

Sustainable by Design – Modular build reduces materials, truck rolls, and carbon footprint (CIBSE TM65 data available).

Model	Type	Applications	Max Splice Capacity (250 µm fibres)	Connector Ports
BUDI-2S	Compact	Small wall-mounted access / demarcation points	72 (SC tray) / 192 (SLE tray)	Up to 8 LC or SC ports
BUDI-1S	Small	Small MDU or small commercial units	96 (SE tray)	Up to 16 LC or 12 SC ports
BUDI-S	Medium	MDU / Small cabinet applications	216 (SE tray) / 336 (SLE tray)	Up to 32 SC or 48 LC ports

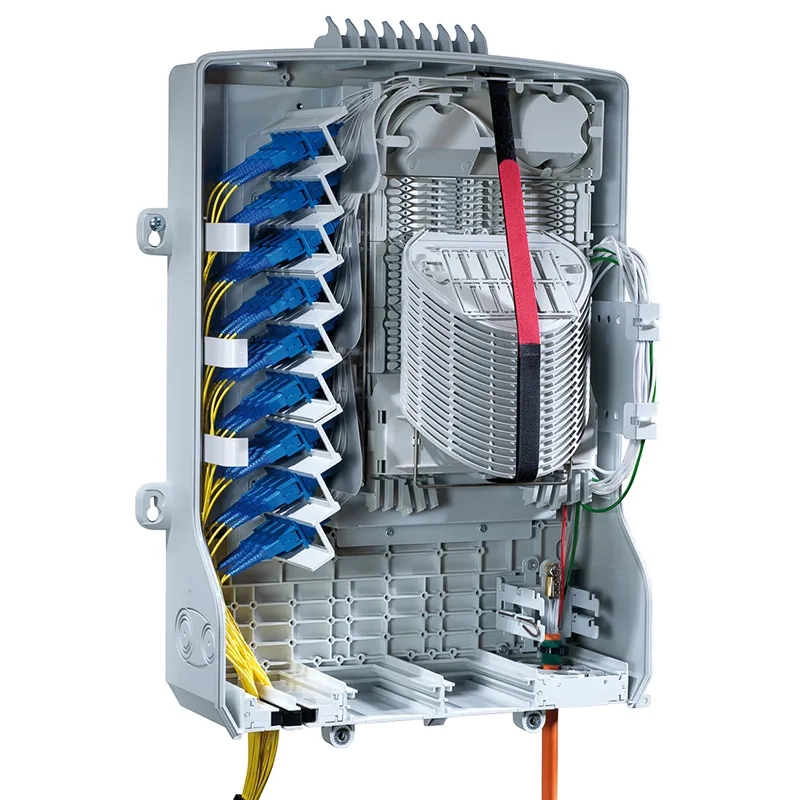

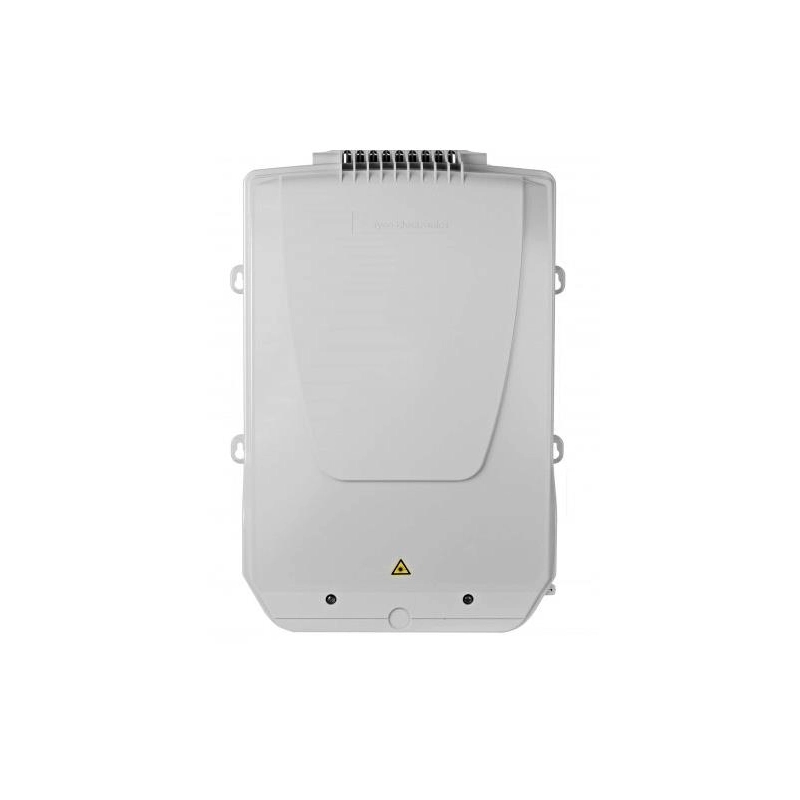

BUDI-M	Large	MDU, campus, or building entrance	432 (SLE tray)	Up to 48 SC or 72 LC ports

Available Configurations

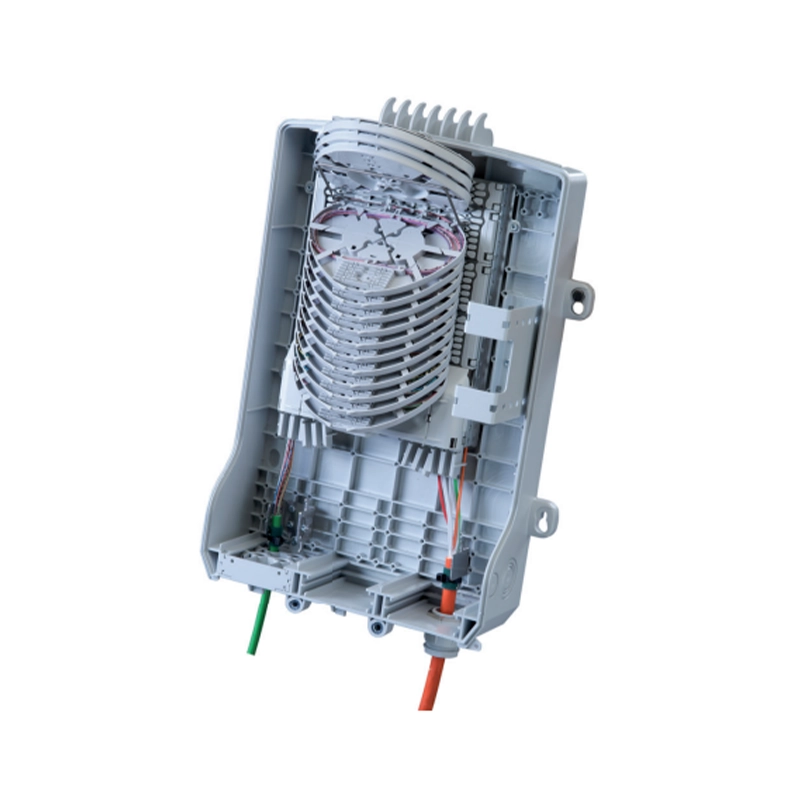

Splice Only (SP) – For direct cable transitions or mid-span access.
Splice + Patch (T, TA, TP) – Combines splicing with front access patching.

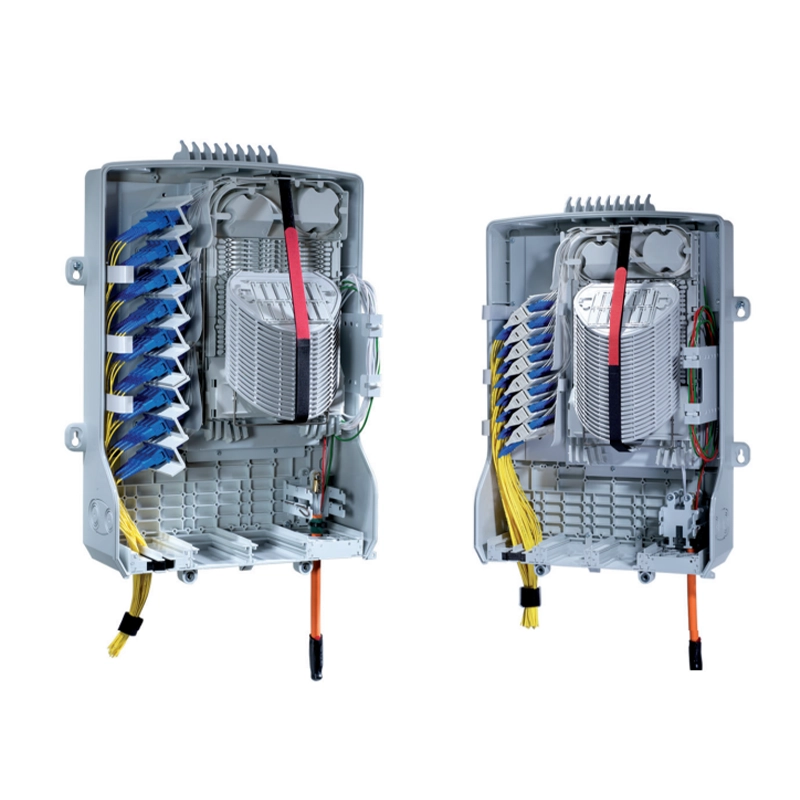

Connectorized Options – Pre-fitted with pigtails, adapters, and passive splitters.

CommScope’s advanced gel and wrap-around sealing kits ensure fast, reliable installation and environmental protection for all BUDI models.

Cable Entry Options

Push-Through Seals – For up to 24 cables with diameters of 5 mm or 7 mm, supplied with brackets and tie wraps.
Wrap-Around Seals – For 2–6 cables, suitable for 10–20 mm diameters, with foam sealing tape and cable fixation hardware.
Main Cable Seals – For the BUDI-2S, supporting 4–9.5 mm diameter cables.
Rubber Drop / Distribution Seals – Available for 4 × 7 mm or 12 × 5 mm cable configurations.

Together, these seal kits provide complete coverage from 5 mm up to 18 mm, ensuring a watertight and strain-relieved connection that meets IP55 performance when vertically mounted.

BUDI enclosures use the proven FIST Universal Mounting System (UMS), enabling flexible tray combinations:

Single Circuit (SC) – 2 fibres per tray
Single Element (SE) – 12 fibres per tray
Slim Element (SLE) – 12 fibres (25 mm bend radius) for high-density installations

Each unit also supports loop storage for uncut fibres and optional splitter modules for PON or GPON architectures.

FTTH / FTTB Building Entry Points
Multi-Dwelling Units (MDUs) and Residential Complexes
Commercial Building Termination Points
Wall-Mounted Access Nodes
PON / GPON Splitter Distribution
Transition from OSP to Indoor Fibre

BUDI’s versatility makes it ideal for both new installations and retrofits, combining performance, scalability, and ease of use.

As an authorised CommScope distributor, Cable Accessories Ltd provides the complete BUDI portfolio and accessories with local expertise and fast delivery throughout Ireland.

Our team can assist from design to delivery, ensuring every project benefits from professional specification, compatibility, and compliance.

Our Services Include

System Design & Specification Support – Guidance on model selection, tray count, and cable sealing.
Pre-Configuration & Kitting – BUDI enclosures supplied with trays, pigtails, seals, and accessories pre-installed.
Local Stock & Logistics – Fast availability of popular models and seal kits.
Technical Assistance – Installation guidance and configuration advice.
Custom Solutions – Integration with local cabinet and mounting systems.

Based in Ireland – Supporting fibre rollout across Ireland’s broadband, telecom, and utility sectors.

Authorised CommScope Partner – Access to genuine BUDI enclosures and seal kits.

End-to-End Support – Design, assembly, and delivery under one roof.

Local Stock Availability – Minimised lead times for Irish projects.

Technical Expertise – Assistance with fibre management, sealing, and installation practices.

Upgrade your building fibre entrance with CommScope BUDI — supplied, configured, and supported locally by Cable Accessories Ltd.

📞 Contact our design team today to discuss your project or request a technical datasheet.

Below are some of the most commonly used BUDI products from the CommScope BUDI range, all available from Cable Accessories Ltd.

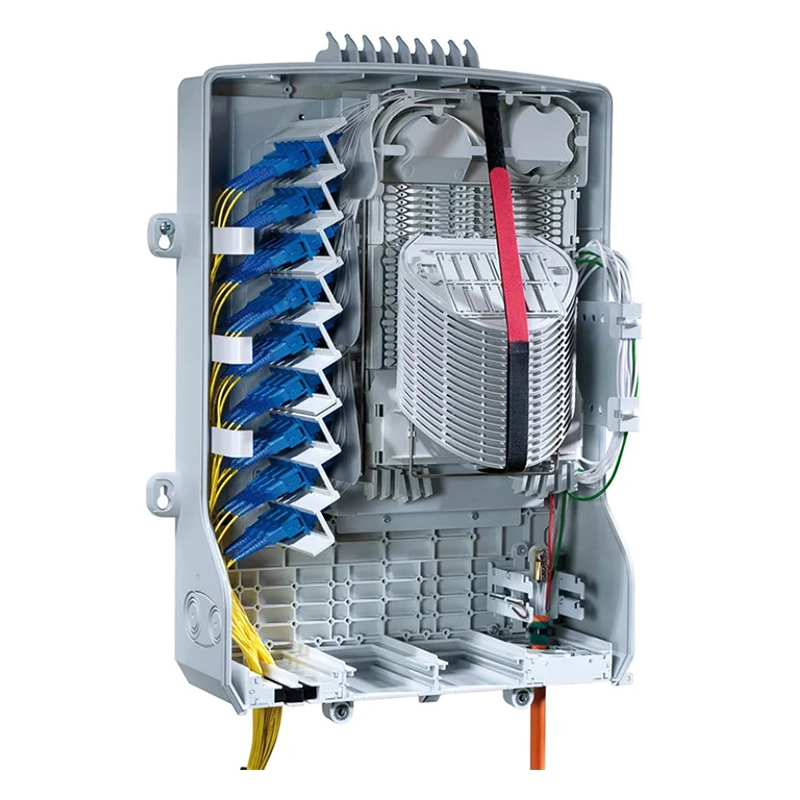

All BUDI products can be supplied as full kits including trays, seals, and cable accessories.

Wall Boxes

BUDI-2S-T-12L1ES
BUDI-1S-SP–B
BUDI-S-SP-A
BUDI-S-T-B
BUDI-M-SP-B
BUDI-M-TP-B
