FOSC Fibre Optic Splice Closures & Accessories

At Cable Accessories Ltd, we supply a comprehensive range of CommScope FOSC-400 and FOSC-600 fibre optic splice closures and accessories — along with our own FOSC-DMARC external demarcation closure — designed to deliver reliable, long-lasting performance for modern fibre networks.

As a long-term CommScope distributor in Ireland, we combine global innovation with local expertise, supporting our customers with stock availability, kitting services, and proactive supply planning to ensure smooth project delivery.

Popular Products

Contact Us

Whether you need product advice, a custom solution, or just have a quick question — we’re here to help and happy to chat!

The CommScope FOSC-400 series is a fit-and-forget closure — engineered for long-term reliability, environmental protection, and ease of use. Designed for aerial, underground, or pedestal installations, the FOSC-400 family provides exceptional sealing, flexibility, and longevity, making it the preferred choice for network operators worldwide.

Key Features

  • Fit and Forget: Once installed, FOSC-400 requires minimal maintenance thanks to its durable, fully sealed design.
  • Environmental Sealing: Protects fibres from moisture, dust, and temperature extremes.
  • Versatile Application: Suitable for loose tube, central core, ribbon, and micro cable designs.
  • Modular Design: Compatible with a wide range of FOSC splice trays and accessories.
  • Flexible Installation: Ideal for aerial, underground, façade, or pole-mounted deployments.
  • Easy Re-entry: Dome construction allows quick, tool-free access for upgrades when needed.



Our FOSC-400 Range

We stock a full selection of FOSC-400 closures to meet every network requirement:

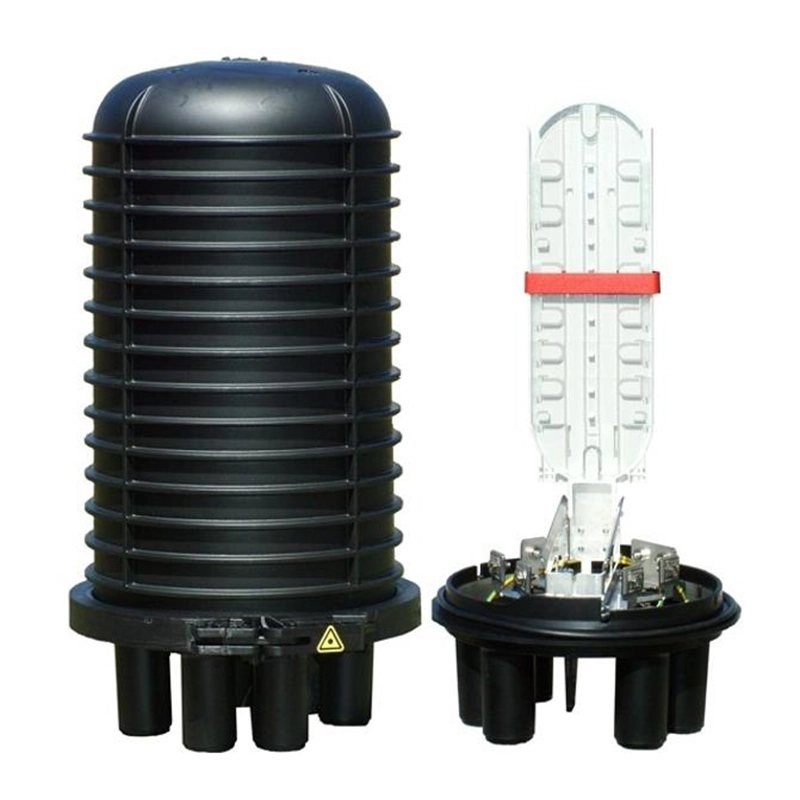

FOSC-400 A Series

Compact closures designed for low fibre-count applications or “tap-off” splicing.

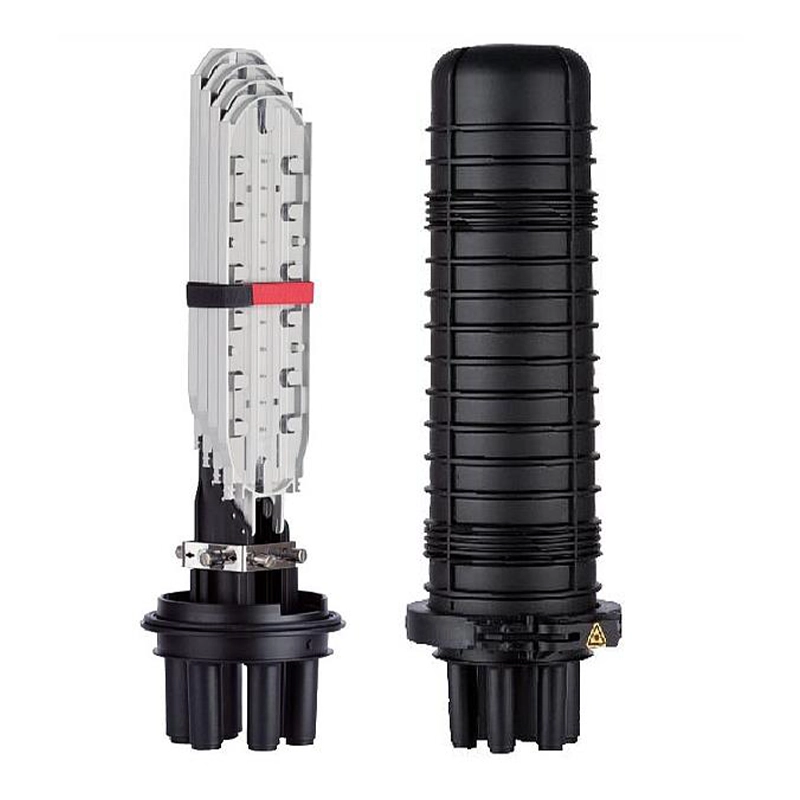

FOSC-400 B Series

Versatile configurations featuring one oval port and multiple round ports for branching and drop networks.

FOSC-400 D Series

High-capacity closures engineered for backbone and distribution splicing in dense network environments.

Download Specsheet

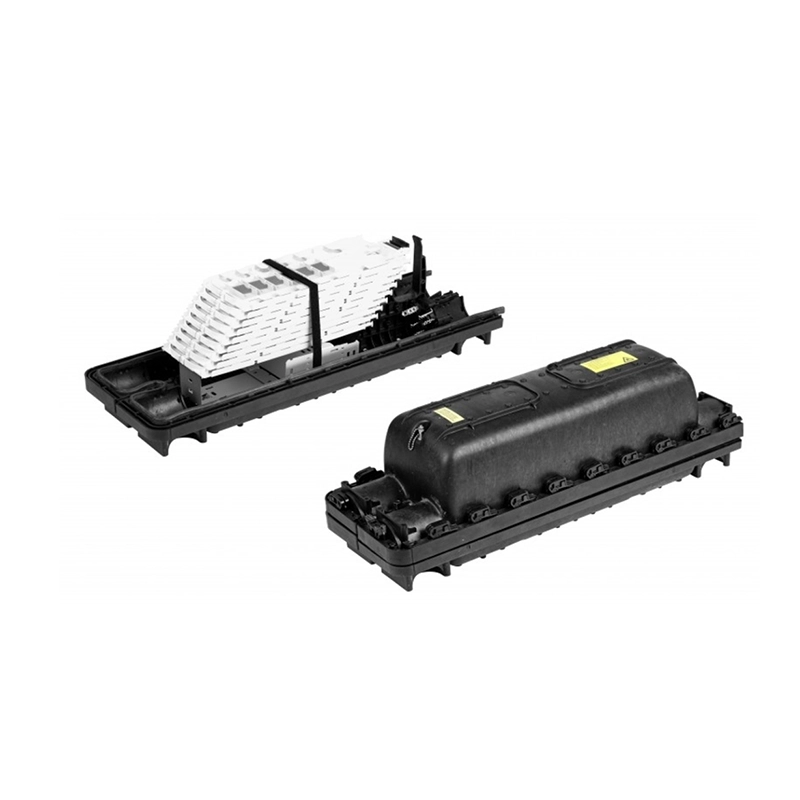

For larger-scale or more demanding deployments, the FOSC-600 family provides enhanced capacity, flexibility, and ruggedness:

Key Features & Capabilities

  • Supports butt (end) or in-line splice configurations
  • Up to 16 multi-out cable ports for branching and multiple cable entries
  • Accepts cables up to 35 mm diameter and supports up to 1,728 fibres in standard configurations
  • Uses gel-seal cable blocks for robust yet re-enterable sealing
  • Internal trays are hinged and removable to facilitate access and reconfiguration
  • Includes a storage basket for slack fibre or ribbon storage, which can be adjusted or extended vertically as required
  • Compatible with both single-fibre splices and ribbon/mass-fusion splicing (via appropriate trays and accessories)
  • Can be configured with C or D variants (C is shallower, D offers more height for trays)

Variants & Capacities

  • FOSC-600 C: More compact form (approx. 828 mm length × 152 mm height) for up to 5 D-type splice trays in a butt configuration
  • FOSC-600 D: Taller version (same length, greater height) accommodating up to 9 D-type splice trays in a butt configuration for higher capacity
  • In certain “XL” variants, capacities can reach very high splice counts using ribbon trays and expanded internal space
Download Specsheet

Outside Plant Demarcation Point

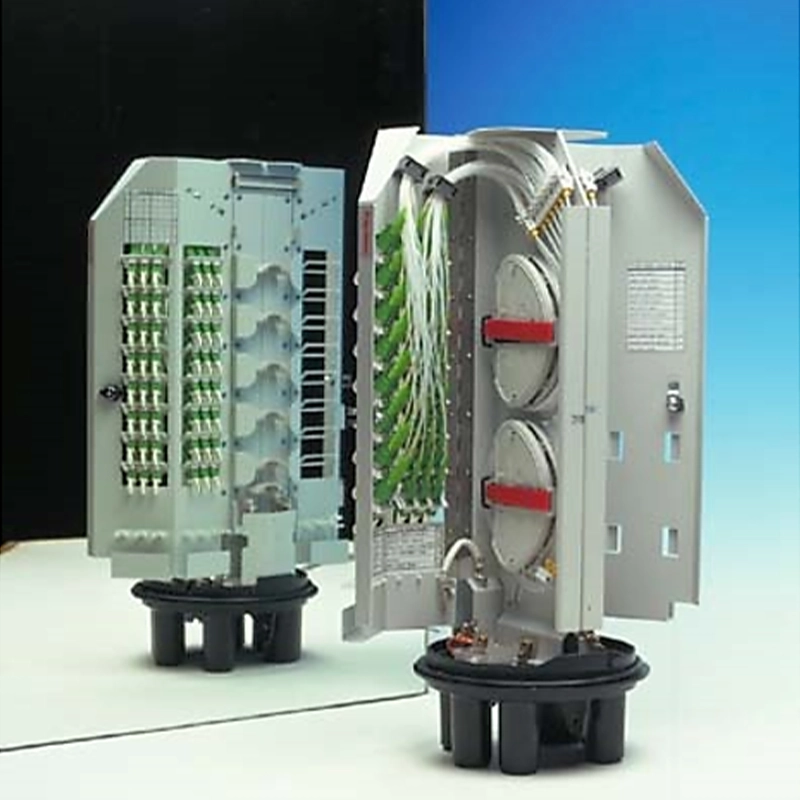

The FOSC-DMARC closure, designed and manufactured by Cable Accessories Ltd, is an environmentally sealed, single-ended closure providing both fibre splicing and patching in the external network.
It enables operators to establish an outdoor demarcation point without allocating precious indoor space for meet-me facilities — ideal for carrier handovers and multi-operator environments.

Key Features and Benefits

  • Single-Ended Design: Durable thermoplastic dome sealed with O-ring and clamp.
  • 6 Cable Ports:
    • 1 oval port for two backbone cables (Ø 10–25 mm each)
    • 5 round ports for drop cables (Ø 5–28 mm)
  • Flexible Sealing Options: Heat-shrink seals for traditional ducts or cold-applied gel seals for mini cables.
  • Dual-Side Internal Layout:
    • Carrier Side: Pigtail strain relief panel (48 fibres) or full patch version with 48 connector patch panel.
    • Backbone Side: 48-connector patch panel compatible with all standard adapter types.
  • Capacity : Supports up to 4 carriers of 12 fibres each, providing 48-fibre splicing and patching capacity per side.
  • Secure Access : Two hinged, lockable internal doors separate the carrier and backbone sides.
  • Integrated Overlength Storage & Pre-Fibering Options.
  • Built-In Ground Feed-Through and Pressure Relief Valve.

Dimensions:

  • Length: 710 mm
  • Diameter (without clamp): 240 mm
  • Diameter (with clamp): 260 mm

We maintain a wide range of FOSC accessories to support complete network builds and maintenance, including:

  • Fibre Splice Trays & Organisers
  • Cable Seals, Glands & Gaskets

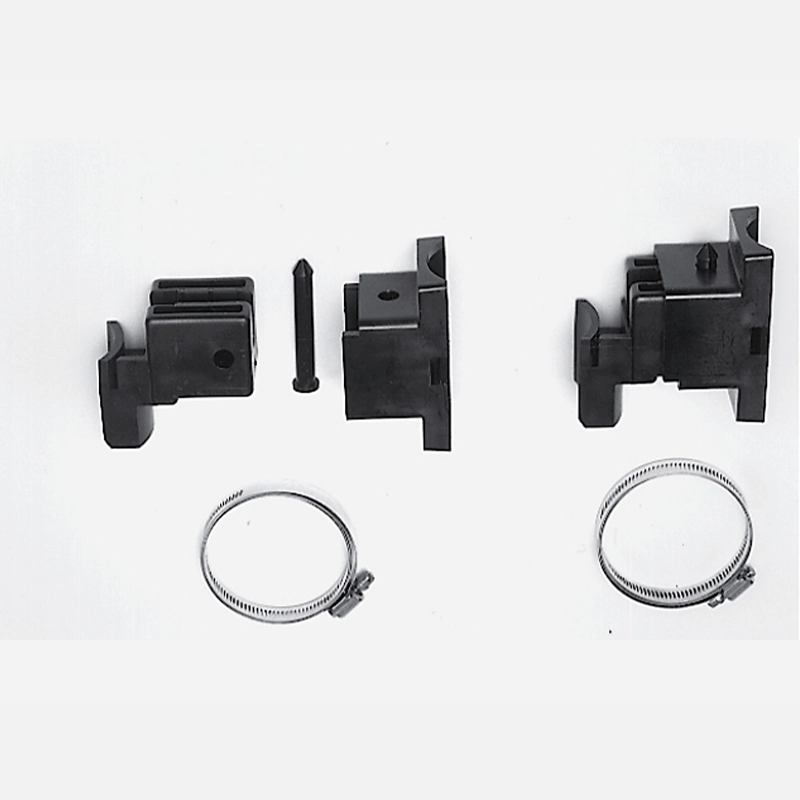

  • Mounting Brackets & Fixings
  • Adapter Plates, Splitters & Passive Components
  • Cold-Applied & Heat-Shrink Sealing Kits

Our custom kitting services ensure every closure is delivered ready-to-install, saving time on-site and ensuring all required components are included.

We provide access to CommScope FOSC ordering guides and datasheets, as well as Cable Accessories Ltd FOSC-DMARC documentation, which detail product specifications, configurations, and installation instructions.
These resources are available on request — and our experienced team is always ready to advise on selection, configuration, and installation best practices.

  • National & regional broadband networks
  • FTTH/FTTP rollouts
  • Data centres & cloud connectivity
  • Utilities & transport networks
  • 5G & mobile backhaul
  • Smart buildings & campuses
  • Industrial & harsh environments
  • Established in the Irish Market: Decades of trusted service and technical expertise.
  • Authorised CommScope Distributor: Access to the full FOSC product portfolio.
  • Stock & Supply Planning: Local inventory and collaborative project forecasting.
  • Kitting & Custom Solutions: Preconfigured closure kits for streamlined installation.
  • Technical Support: Expert local team ready to assist at every stage.

Below are some of the most commonly used closures and kits configurations from the CommScope FOSC closure range all available from Cable Accessories Ltd. All FOSC closures can be supplied as full kits including trays, seals, and cable accessories.

Closures

Fiber Trays

Gel Seals

Get in Touch

Enhance your network with CommScope FOSC closures and our own Cable Accessories Ltd FOSC-DMARC demarcation systems — reliable, scalable, and built to last.

Submit a contact form to discuss your closure requirements or request documentation.
