Subduct

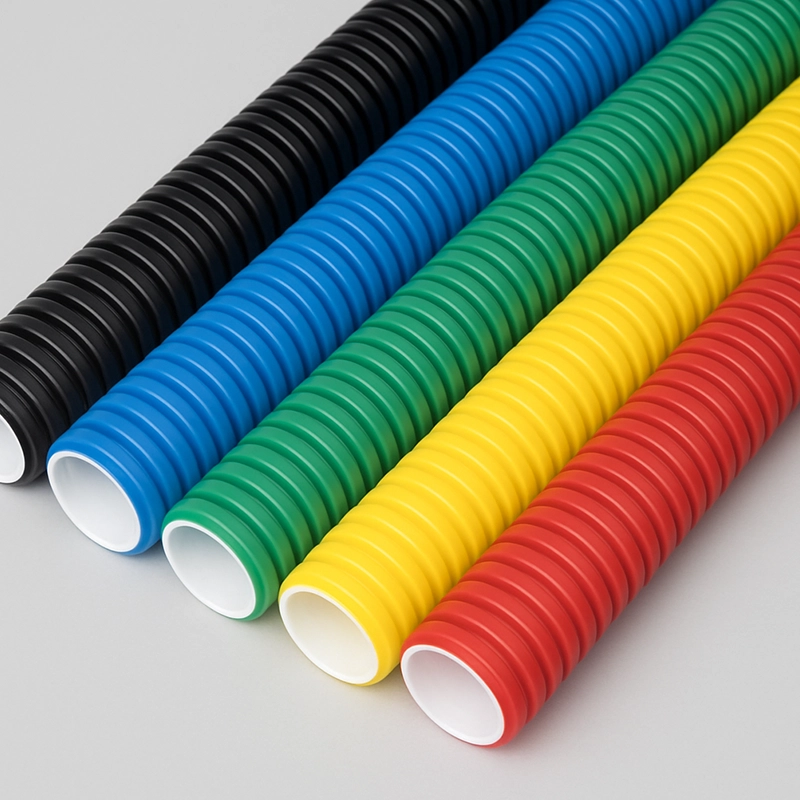

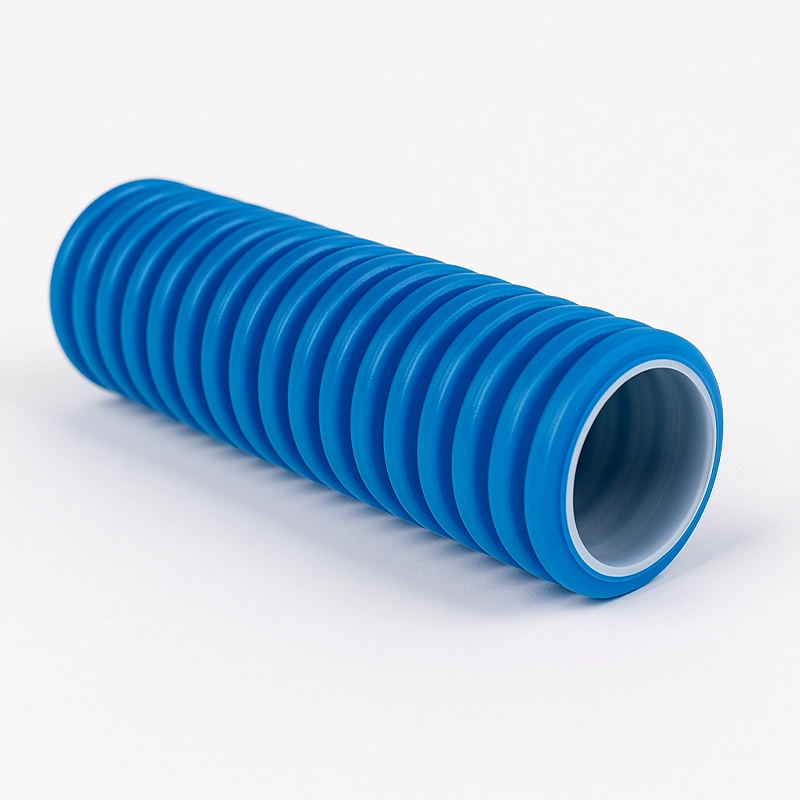

Standard Sub-Ducts (20–110 mm)

Durable and Proven Ducting Solutions for Cable Protection

Manufactured by Gabocom – Supplied in Ireland by Cable Accessories Ltd

Reliable Ducting for Fibre and Power Cable Installations

Our standard sub-ducts are designed for the safe installation and long-term protection of fibre optic and power cables in a wide range of underground environments.
These ducts are engineered to withstand mechanical and traffic loads, providing robust and stable performance for all telecom, utility, and infrastructure projects.

As an established supplier in the Irish market, Cable Accessories Ltd offers a full range of standard ducts in sizes from 20 mm up to 110 mm, with options for smooth or longitudinally ribbed inner surfaces.

Contact Us

Whether you need product advice, a custom solution, or just have a quick question — we’re here to help and happy to chat!

Construction

Standard sub-ducts are manufactured from high-density polyethylene (HDPE), ensuring:

  • Excellent stiffness and crush resistance under soil and load pressure.
  • Long-term durability, even in challenging ground conditions.
  • Flexibility for installation in various environments and terrains.

Ducts up to 50 mm are dual-layer, combining a structural outer wall for strength with a low-friction inner surface to ease cable pulling or blowing.

Our ducts are suitable for a variety of installation techniques:

  • Ploughing (direct bury)
  • Horizontal Directional Drilling (HDD)
  • Open trench installation
Outer Diameter (mm) SDR 26 Wall (mm) SDR 17 Wall (mm) SDR 13.6 Wall (mm) SDR 11 Wall (mm)
32 2.0 2.9 3.8 –
40 2.0 3.5 4.2 –
50 2.4 3.0 3.7 4.7
63 3.0 3.8 4.7 5.8
75 3.7 4.5 5.6 6.8
90 4.2 5.4 6.6 8.1
110 4.7 6.0 7.0 8.2

Other OD/ID configurations are available on request.

  • Material: High-density polyethylene (HDPE)
  • Standards: Compliant with EN 61386-24 and equivalent European ducting standards
  • Tensile Strength: ≥ 23 MPa
  • Density: ≥ 0.95 g/cm³
  • Melt Flow Rate: ≤ 0.4 g/600s (ISO 1133:2000)
  • Temperature Range:
    • Installation: –20 °C to +60 °C
    • Operation: –45 °C to +60 °C
  • Impact Resistance: 15 J at –5 °C (EN 50086-2-4)
  • Bending Radius: ≥ 10 × OD

Ovality: ≤ 3% (OD ≤ 40 mm), ≤ 5% (OD > 40 mm)

  • Available in black or orange, with other colors available on request.
  • Supplied in coils or on wooden drums depending on duct size.
  • Supplied without pulling rope.
  • Compatible with standard sealing systems, connectors, and fittings.

These ducts are manufactured under ISO-certified quality and environmental management systems (ISO 9001, ISO 14001, ISO 45001).

All production waste and leftover materials are fully recyclable, supporting sustainable infrastructure development.

  • Trusted supplier to Irish telecom and utility projects
  • Design assistance and technical support for duct configurations
  • Comprehensive range of accessories, including connectors, seals, and fittings

Standard Sub-Ducts by Gabocom – engineered protection, long-term performance, and complete support from Cable Accessories Ltd.
